Detailed Product Description
| Product Name: | Danfoss Hydraulic Motor | Type: | Spool Valve |
|---|---|---|---|
| Displacement: | 36CC-500CC | Color: | Blue, Grey Or Black |
| Seal Kits: | Germany High Pressure Shaft Seal Kits | Brake: | Built-in Brake |
| Port: | Side Port | ||
| High Light: |
orbit hydraulic motor, orbital hydraulic motor |
||

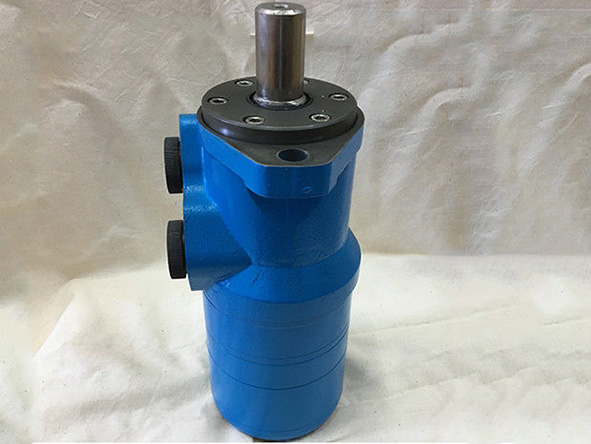

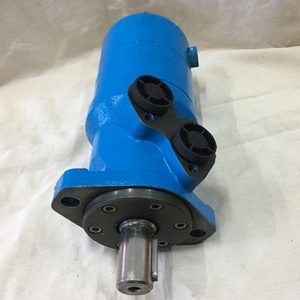

BMR-BK01 Hydraulic motors bulit-in integrated dynamic holding brake
These motors are designed for open circuits and withstands max. system pressure in the brake release line, even when the brake is released at low pressure. Brake release can be controlled by connecting the release port to the pump line. In addition, either a changeover valve can be installed to give automatic brake release or a directional valve to control brake release.
Specifications of hydraulic pump motor:
| ype | BMR-BK01 | BMR-BK01 | BMR-BK01 | BMR-BK01 | BMR-BK01 | BMR-BK01 | BMR-BK01 | BMR-BK01 | BMR-BK01 | |
| 50 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 375 | ||
| 51.7 | 81.5 | 102 | 128 | 157 | 195 | 253 | 318 | 381 | ||
| Max. speed (rpm) | cont. | 509 | 502 | 497 | 459 | 372 | 301 | 231 | 184 | 166 |
| int. | 603 | 598 | 574 | 574 | 465 | 376 | 289 | 230 | 192 | |
| Max. torque (N•m) |
cont. | 103 | 203 | 254 | 317 | 391 | 359 | 437 | 456 | 465 |
| int. | 88.6 | 160 | 200 | 250 | 308 | 333 | 473 | 502 | 520 | |
| rated | 104 | 164 | 205 | 256 | 316 | 335 | 437 | 456 | 465 | |
| Max. output (kW) | cont. | 5.5 | 10.7 | 13.2 | 15.2 | 15.2 | 11.3 | 10.6 | 8.8 | 8.1 |
| int. | 5.6 | 10 | 12 | 15 | 15 | 13.1 | 14.3 | 12.1 | 10.5 | |
| Max. pressure drop(Mpa) | cont. | 14 | 17.5 | 17.5 | 17.5 | 17.5 | 13 | 12 | 10 | 8.5 |
| int. | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 13 | 11 | 9.5 | |
| rated | 14 | 14 | 14 | 14 | 14 | 12 | 12 | 10 | 8.5 | |
| Max.flow (L/min) | cont. | 27 | 42 | 52 | 60 | 60 | 60 | 60 | 60 | 65 |
| int. | 32 | 50 | 60 | 75 | 75 | 75 | 75 | 75 | 75
|
|
