Detailed Product Description
| Product Name: | Low Speed Hydraulic Motor/obital Hydraulic Motor | Mode: | Gerotor Gear Set |
|---|---|---|---|
| Displacement: | 8, 12.5, 20, 32, 40, 50,70cc | Oil Ports: | Rear Ports And Side Ports |
| Flange: | Circle-flange/Rhomb -flange | Material: | Cast Iron |
| Color: | Blue, Grey Or Black | Net Weight: | 1.9kg-3.0kg |
| High Light: | white hydraulic pumps
white hydraulic wheel motor |
||

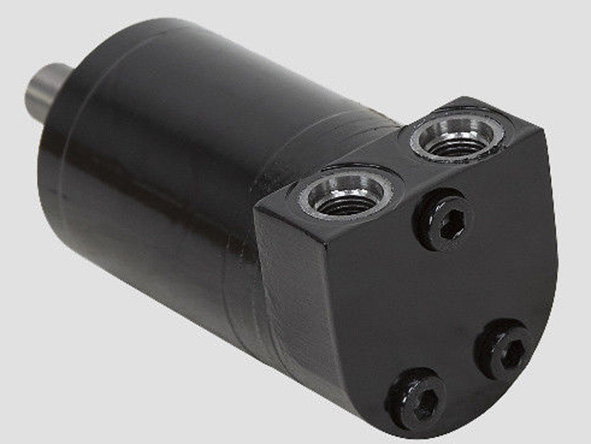

BMM side ports Low Speed High Torque Gerotor gear set Hydraulic Oribit Motor
Spool valve design intended for light-duty applications such as in the mobile, industrial, and agricultural markets.
SPECIFICATIONS
- Brand White Drive Products
- Model 125032JL5C3AAAAA
- Family WM
- Disp. 1.9 cu. in. / rev.
- Motor Type Gerotor
- Rotation Reversible
- Pressure:
1450 PSI cont.
2030 PSI int. - Torque:
354 in-lbs. cont.
487 in-lbs. int. - Speed:
622 RPM cont.
767 RPM int. - Flow:
5 GPM cont.
7 GPM int. - Mount 1/4″-18 three-bolt round on 1-3/4″ B.C., 1-1/4″ pilot
- Shaft 5/8″ dia. x 1-1/8″ long, keyed
- Ports SAE 6 Side Ports, Aligned
- Case Drain SAE 3
- Size 4-3/4″ x 2-7/16″ x 2-3/8″
- Shpg. 7 lbs.
