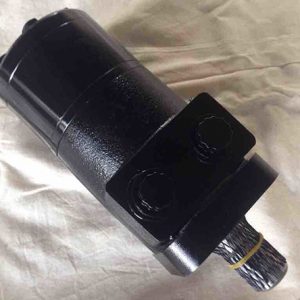

BMM+FYMMD pressure relief valve orbital hydraulic motor
Quick Detail:
BMM series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weight
Specifications:
| Type | BMM | BMM | BMM | BMM | BMM | BMM | |
| 8 | 12.5 | 20 | 32 | 40 | 50 | ||
| Displacement (cm3/rev.) | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max. speed (rpm) | cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| Max. torque (N•m) | int. | 15 | 23 | 35 | 57 | 70 | 88 |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max. output
(k W) |
cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max. pressure drop (MPa) | cont. | 10 | 10 | 10 | 10 | 9 | 7 |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max. flow (L/min) | cont. | 16 | 20 | 20 | 20 | 20 | 20 |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight (kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
| option: | Application: | |
| – Model – Spool valve, gerotor; | *Conveyors | |
| – With or without flange; | *Textile machines | |
| – Side and rear ports; | *Machine tools | |
| – Shaft – straight and splined; | *Mining machinery | |
| – Flange-circle or Rhomb flange | *Construction plant equipment | |
| – Three ports – Metric /UNC and BSPP; | *Access platforms | |
| – Color-Blue, grey ,black ,yellow |
Competitive Advantage:
* Advanced manufacturing devices for the gerotor gear set ,which provide small volume ,high efficiency and long life
* Germany high pressure shaft seal kits which can be used in parallel or in series
* Advanced construction design,high power and low weight
| DANFOSS | CHAR-LYNN –EATON CODE | M+S |
| BMM series like OMM series | BMM series like J-2 (129) series | BMM series like MM/MLHM series |
| BMP series like OMP series | BMPH series like H (101)series | BMP series like MP/MLHP series |
| BMR series like OMR series | BMRS series like R (103)series | BMR series like MR/MLHR series |
| BMS series like OMS series | BMSE series like 2k (104)series | BMS series like MS/MLHS series |
| BMT series like OMT series | BMTE series like 6K(112) series | BMT series like MT/MLHT series |
| BMV series like OMV series | BMVE series like10K(119) series | BMV series like EMV/MLHV series |
